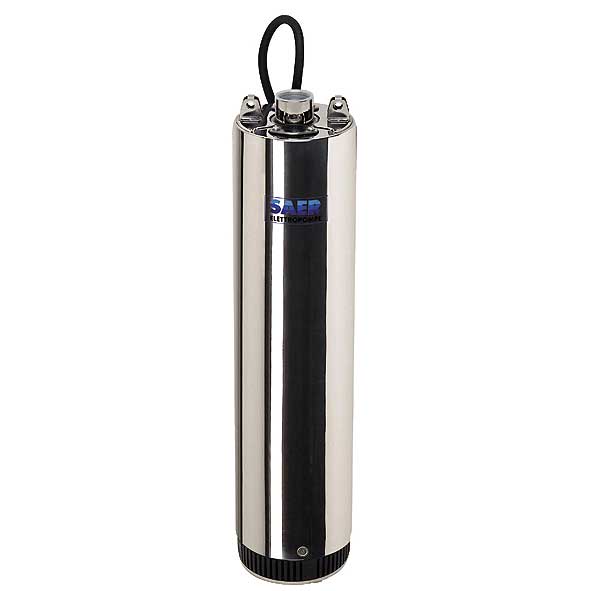

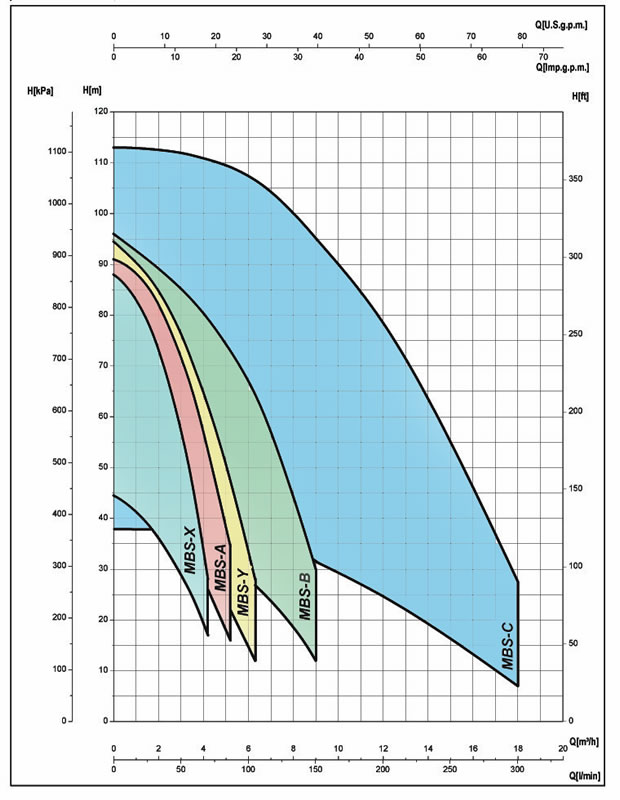

MBS

ENBLOC SUBMERSIBLE MOTOR-DRIVEN PUMPS

APPLICATIONSFor water supply from tanks, basins or tubs and from openwells (large wells) or from 6” wells for residential, civil oragricultural use and for pressurizing water in general.
MATERIALS: AISI 304 stainless steel.

  • Max Delivery: 18 m3/h
  • Max Head: 113 m
  • Power: 0,55÷4 kW
data sheet

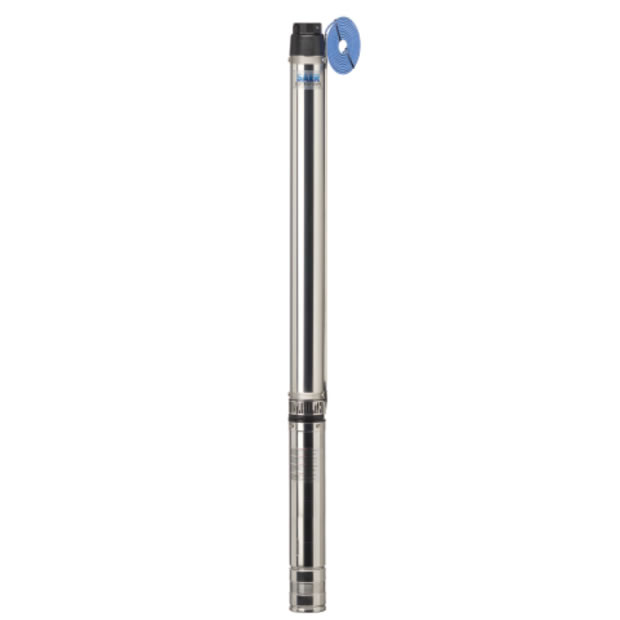

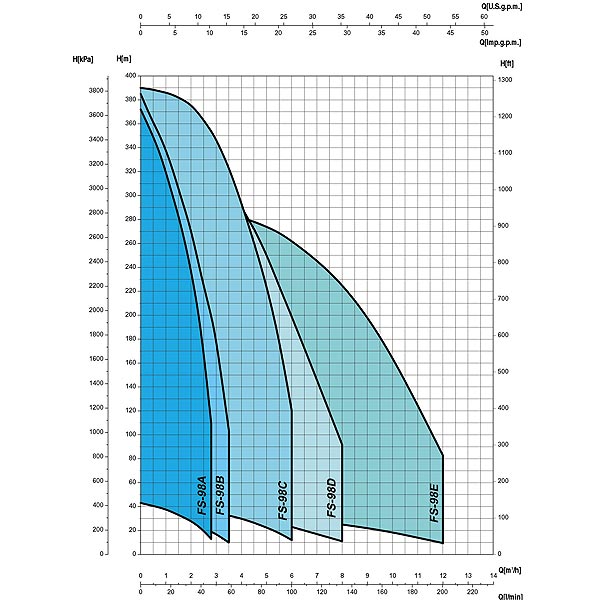

FS-98

4” SUBMERSIBLE ELECTRIC PUMPS WITH FLOATING IMPELLER

APPLICATIONSSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of minimum diameterof 104 mm, tanks or natural basins.
MATERIALS: G20Mn5 1.6220 steel, brass, AISI 304 stainless steel.

  • Max Delivery: 12 m3/h
  • Max Head: 390 m
  • Power: 0,37÷7,5 kW
data sheet

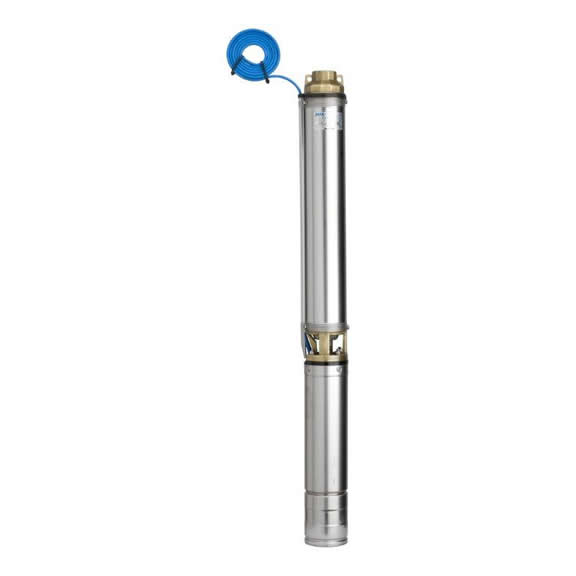

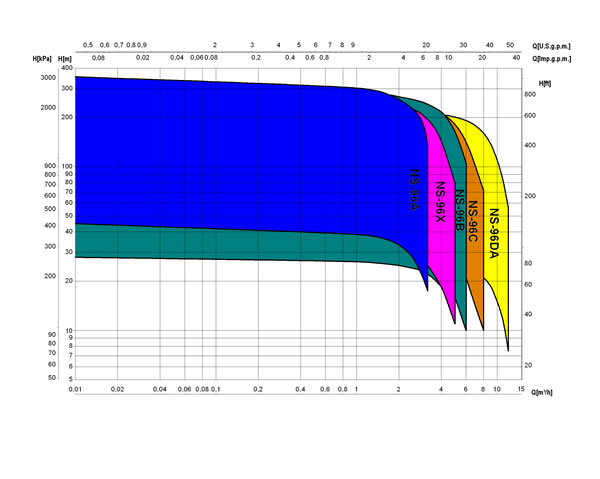

NS-96

4” SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONS Suitable for lifting, pressurising and distribution in civil and industrial installations, autoclave and cistern inlets, washing plants, irrigation systems. Draws from wells of min. diameter of 104 mm, tanks or natural basins.
MATERIALS: techno-polymer, brass, AISI 304 stainless steel.

  • Max Delivery: 12 m3/h
  • Max Head: 355 m
  • Power: 0,37÷5,5 kW
data sheet

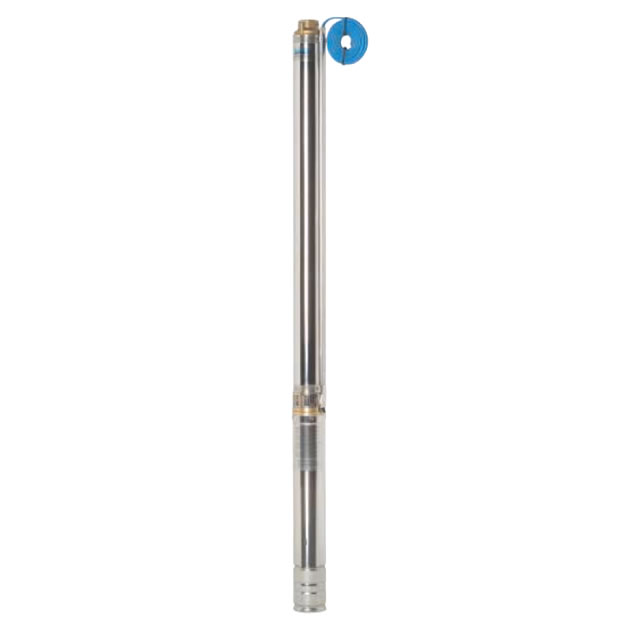

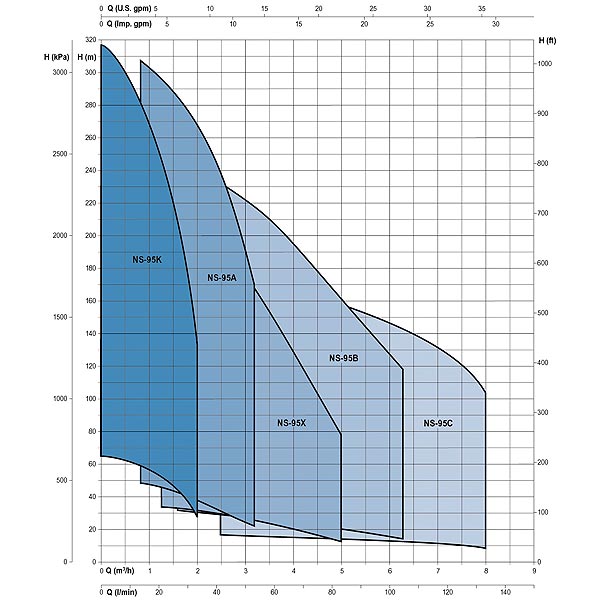

NS-95

4” SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 104 mm, tanks or natural basins.
MATERIALS: FeG450 steel, brass, AISI 304 stainless steel.

  • Max Delivery: 25 m3/h
  • Max Head: 314 m
  • Power: 0,37÷7,5 kW
data sheet

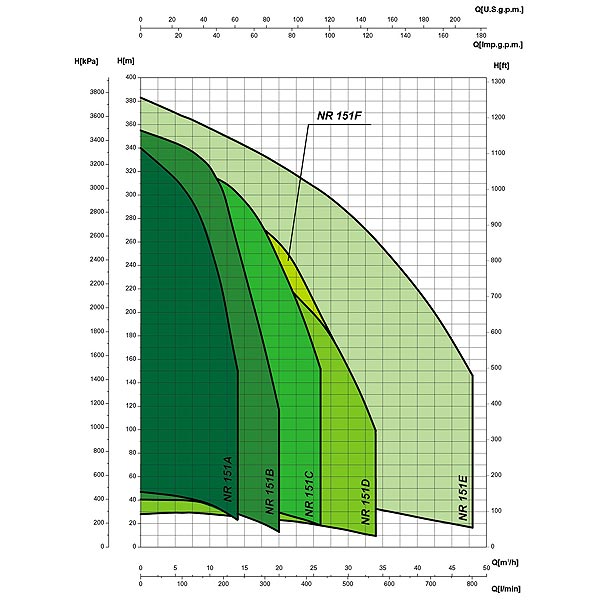

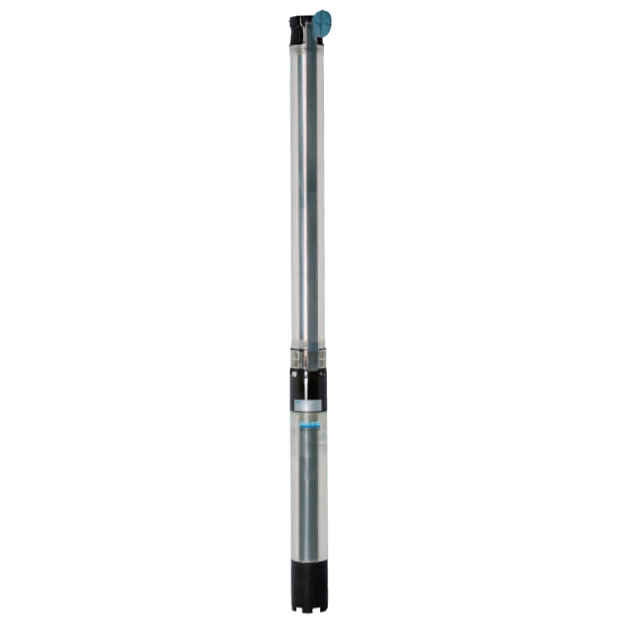

NR-151

6” RADIAL SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 156 mm, tanks or natural basins.
MATERIALS: cast iron EN-GJL-250, AISI 304 stainless steel.

  • Max Delivery: 48 m3/h
  • Max Head: 364 m
  • Power: 1,5÷22 kW
data sheet

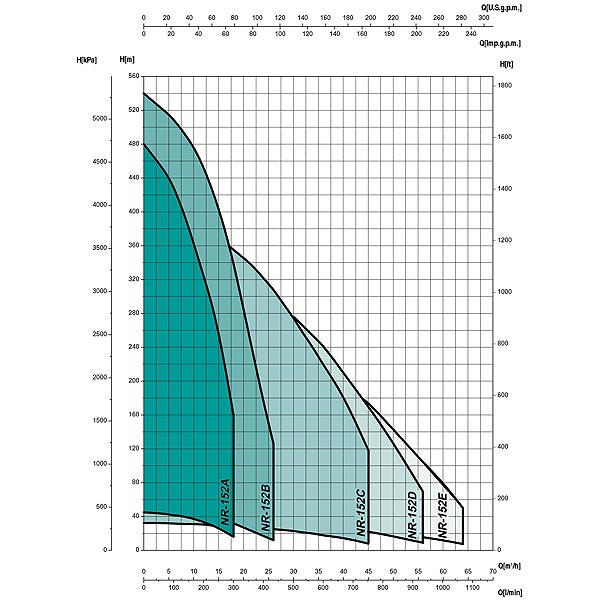

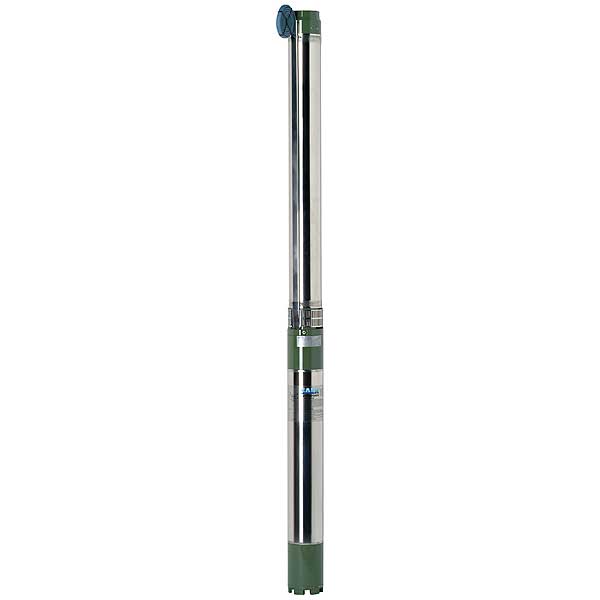

NR-152

6” SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 156 mm, tanks or natural basins.
MATERIALS: cast iron EN-GJL-250, carbon steel G20Mn5, AISI 304 stainless steel.

  • Max Delivery: 64 m3/h
  • Max Head: 540 m
  • Power: 2,2÷37 kW
data sheet

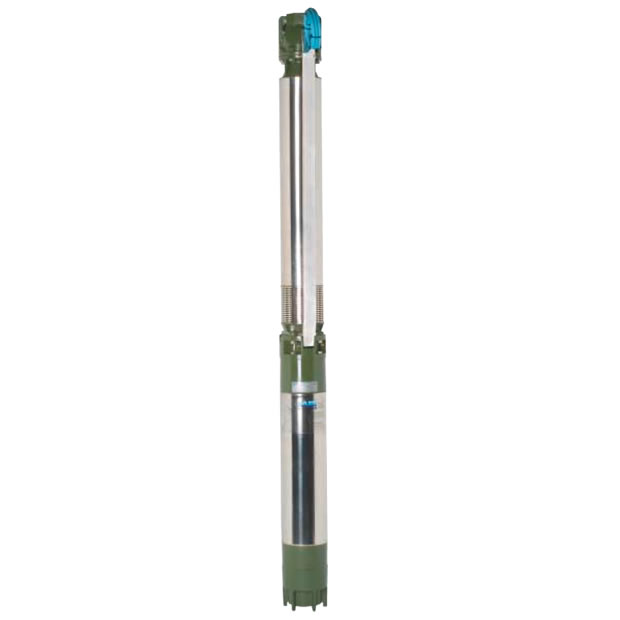

NR-201

8” RADIAL SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 204 mm, tanks or natural basins.
MATERIALS: cast iron EN-GJL-250, AISI 316 stainless steel.

  • Max Delivery: 120 m3/h
  • Max Head: 782 m
  • Power: 4÷92 kW
data sheet

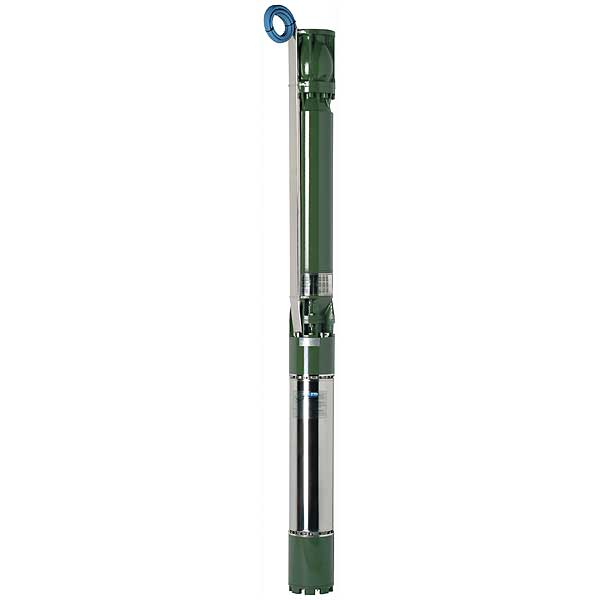

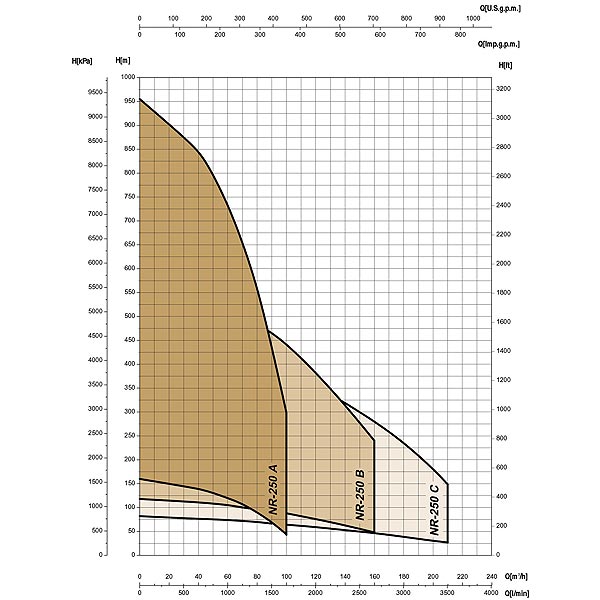

NR-250

10” RADIAL SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 274 mm, tanks or natural basins.
MATERIALS: FeG450 steel.

  • Max Delivery: 210 m3/h
  • Max Head: 955 m
  • Power: 30÷185 kW
data sheet

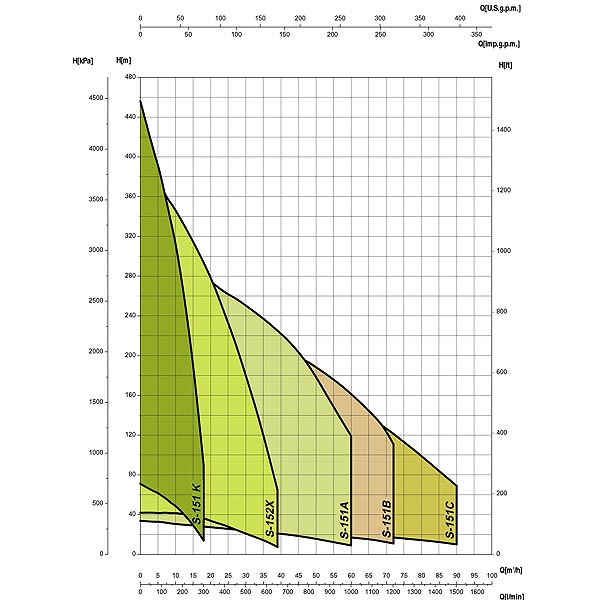

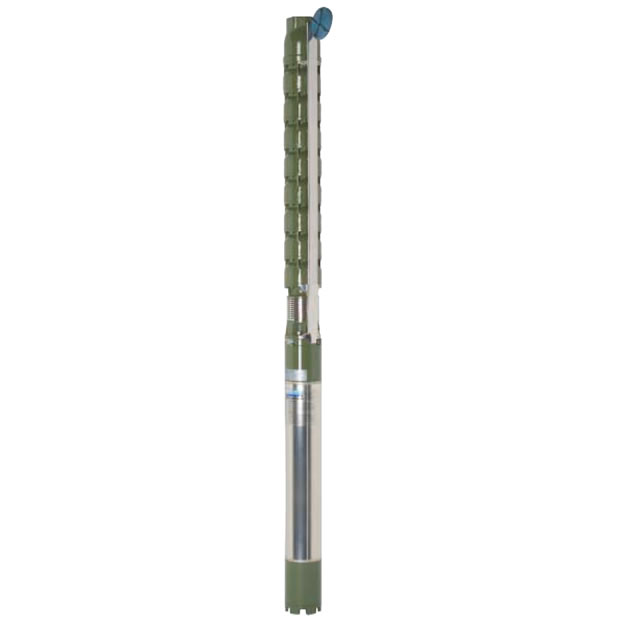

S-151/S-152

6” SEMI-AXIAL SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 158 mm, tanks or natural basins.
MATERIALS: cast iron EN-GJL-250, carbon steel G20Mn5, AISI 316 stainless steel, marine bronze G-CuSn10.

  • Max Delivery: 90 m3/h
  • Max Head: 390 m
  • Power: 3÷37 kW
data sheet

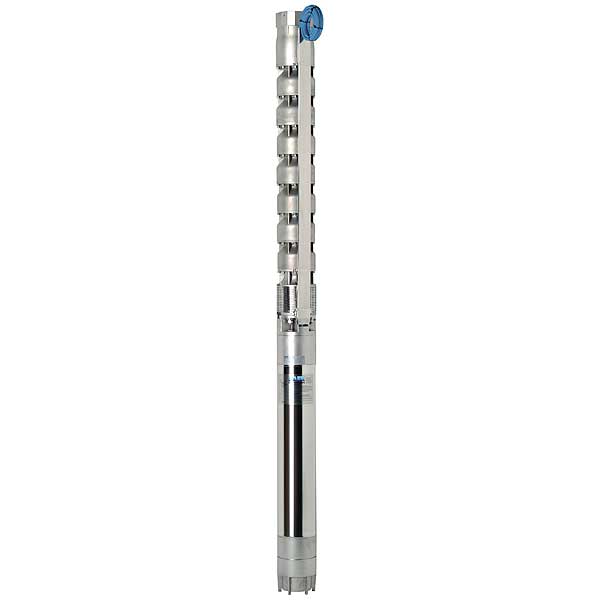

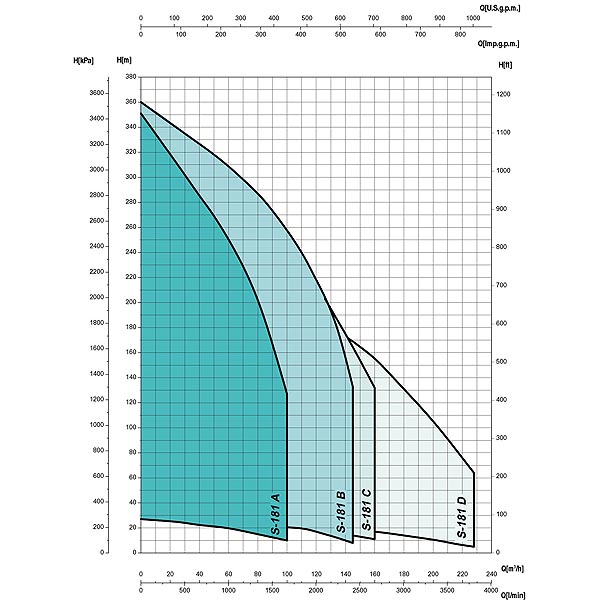

S-181

8” SEMI-AXIAL SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 210 mm, tanks or natural basins.
MATERIALS: cast iron EN-GJL-250, carbon steel G20Mn5, AISI 316 stainless steel, marine bronze G-CuSn10.

  • Max Delivery: 228 m3/h
  • Max Head: 338 m
  • Power: 5,5÷92 kW
data sheet

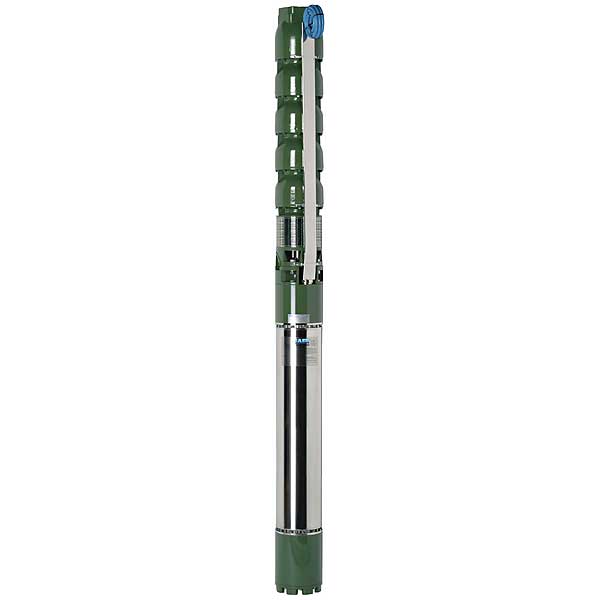

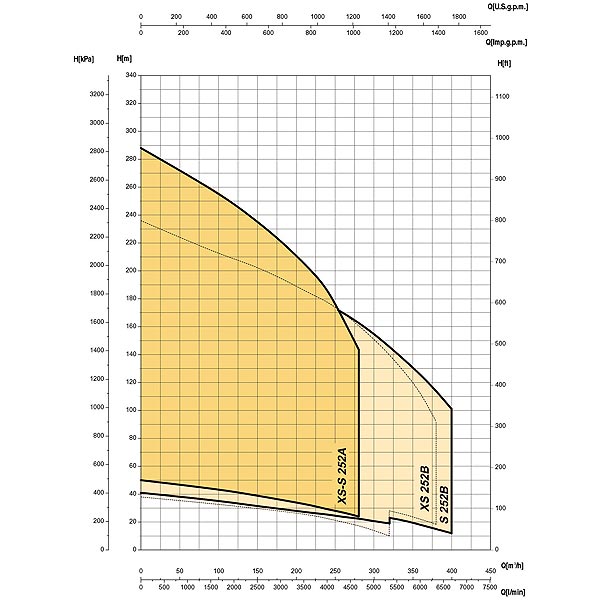

S-252

10” SEMI-AXIAL SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 264 mm, tanks or natural basins.
MATERIALS: cast iron EN-GJL-250, AISI 316 stainless steel, marine bronze G-CuSn10.

  • Max Delivery: 400 m3/h
  • Max Head: 388 m
  • Power: 22÷170 kW
data sheet

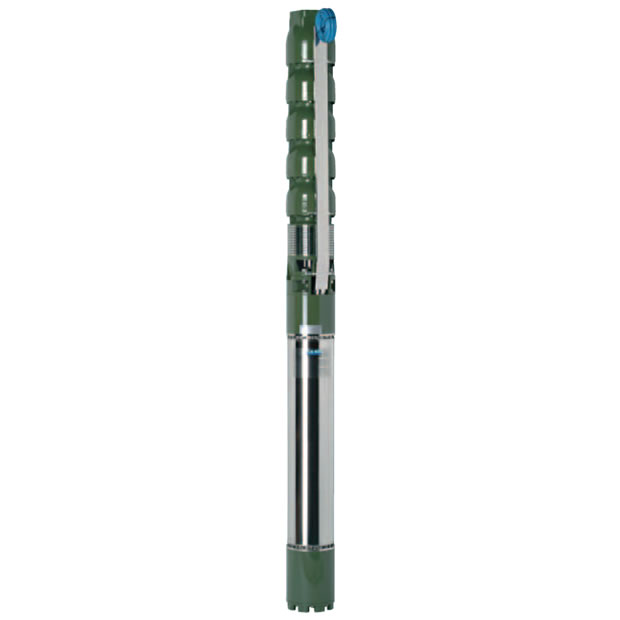

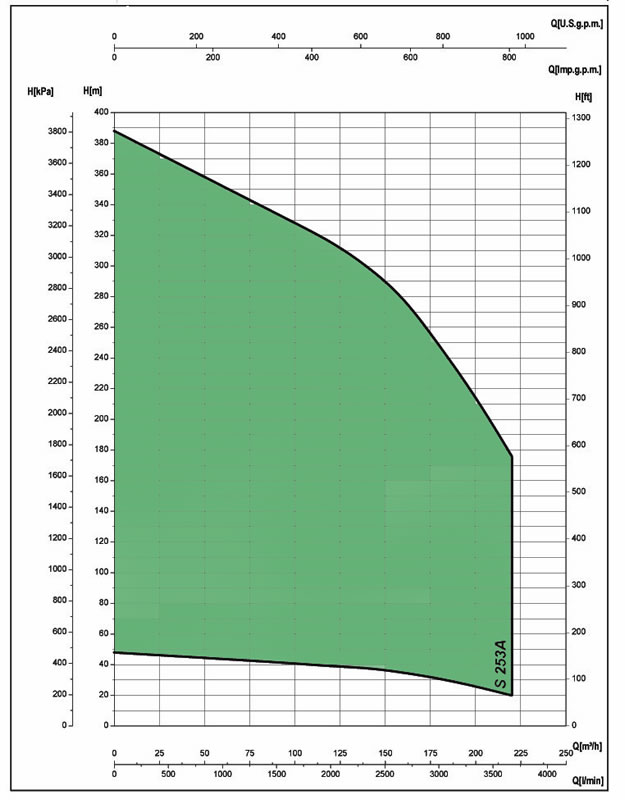

S-253

10” SEMI-AXIAL SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 264 mm, tanks or natural basins.
MATERIALS: cast iron EN-GJL-250, AISI 316 stainless steel, marine bronze G-CuSn10.

  • Max Delivery: 400 m3/h
  • Max Head: 388 m
  • Power: 22÷170 kW
data sheet

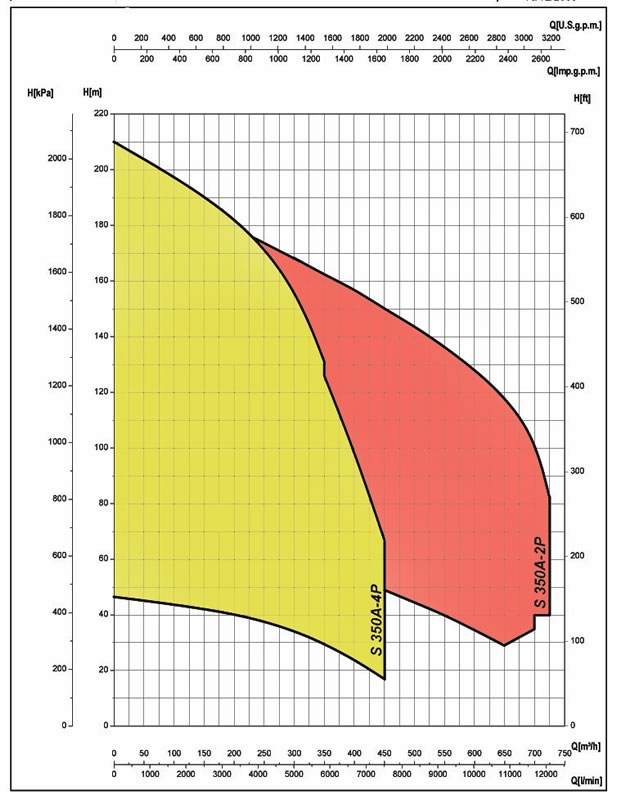

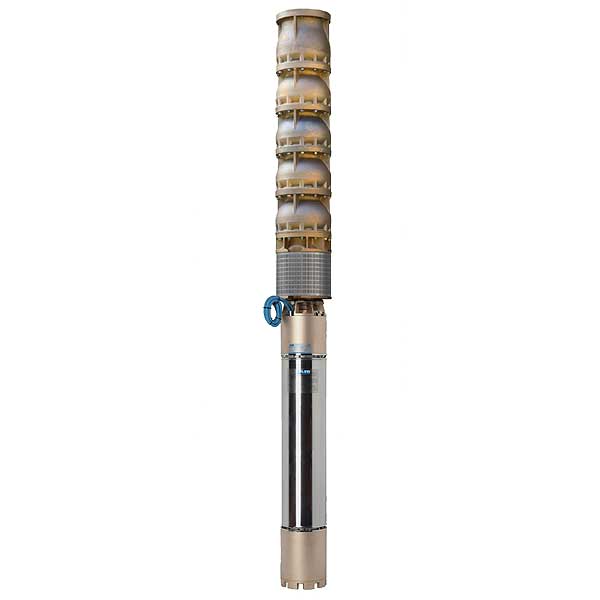

S-350 4 Poli

14” SEMI-AXIAL SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 406 mm, tanks or natural basins.
MATERIALS: cast iron EN-GJL-250, AISI 316 stainless steel, marine bronze G-CuSn10.

  • Max Delivery: 450 m3/h
  • Max Head: 210 m
  • Power: 45÷185 kW
data sheet

S-350 2 Poli

14” SEMI-AXIAL SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 406 mm, tanks or natural basins.
MATERIALS: cast iron EN-GJL-250, AISI 316 stainless steel, marine bronze G-CuSn10.

  • Max Delivery: 725 m3/h
  • Max Head: 196 m
  • Power: 110÷300 kW
data sheet

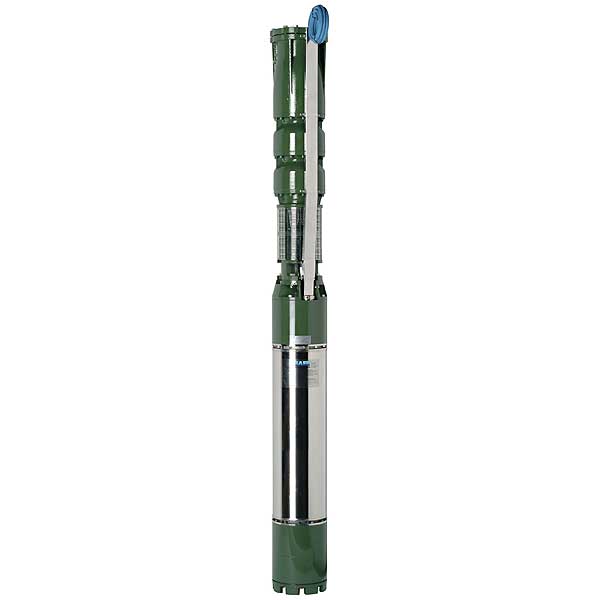

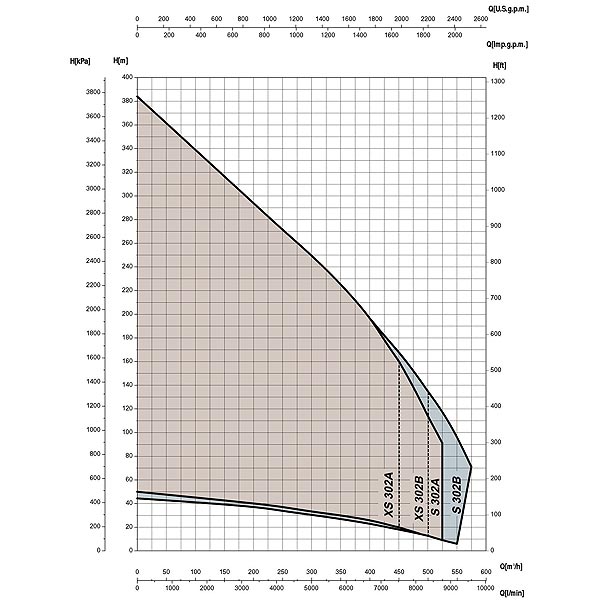

S-302

12” SEMI-AXIAL SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 310 mm, tanks or natural basins.
MATERIALS: cast iron EN-GJL-250, AISI 316 stainless steel, marine bronze G-CuSn10.

  • Max Delivery: 575 m3/h
  • Max Head: 384 m
  • Power: 37÷300 kW
data sheet
