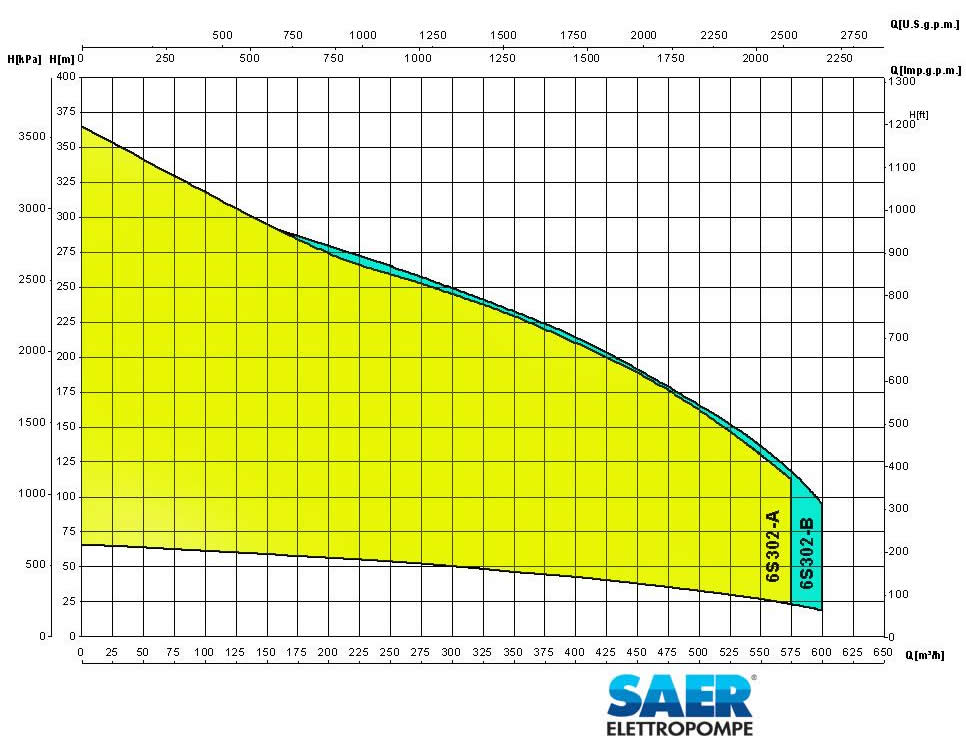

6S-302

12” SEMI-AXIAL SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 310 mm, tanks or natural basins.
MATERIALS: cast iron EN-GJL-250, AISI 316 stainless steel, marine bronze G-CuSn10.

  • Max Delivery: 600 m3/h
  • Max Head: 365 m
  • Power: 67÷300 kW
data sheet

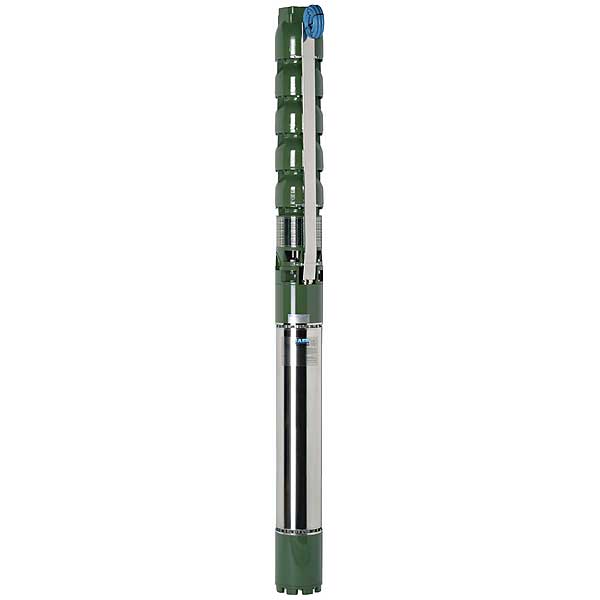

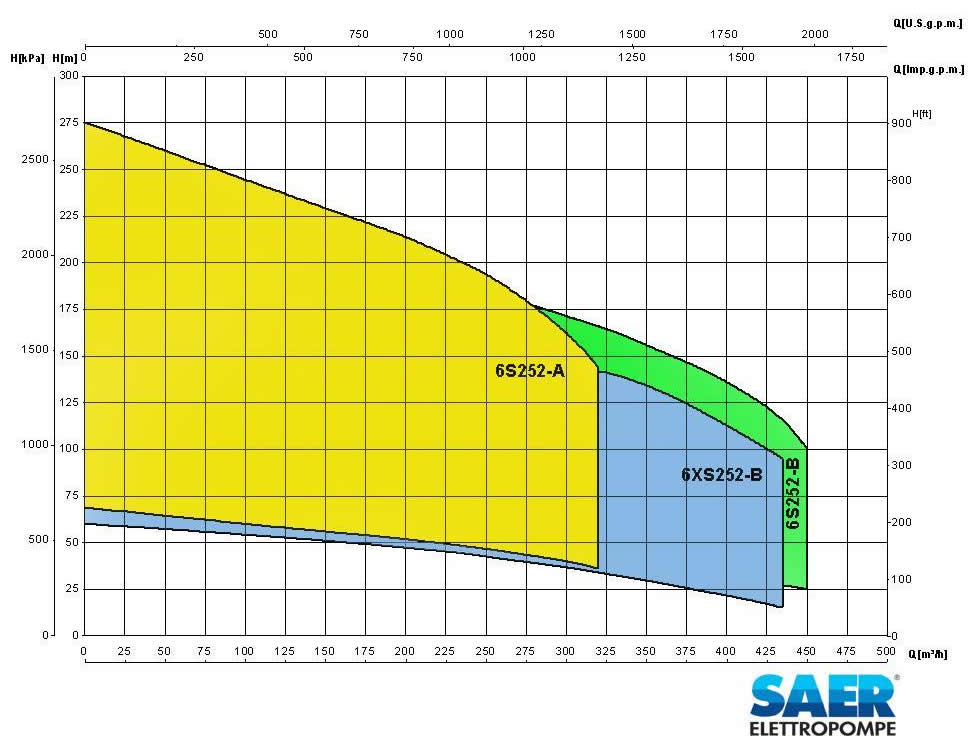

6S-252

10” SEMI-AXIAL SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 264 mm, tanks or natural basins.
MATERIALS: cast iron EN-GJL-250, AISI 316 stainless steel, marine bronze G-CuSn10.

  • Max Delivery: 450 m3/h
  • Max Head: 276 m
  • Power: 45÷185 kW
data sheet

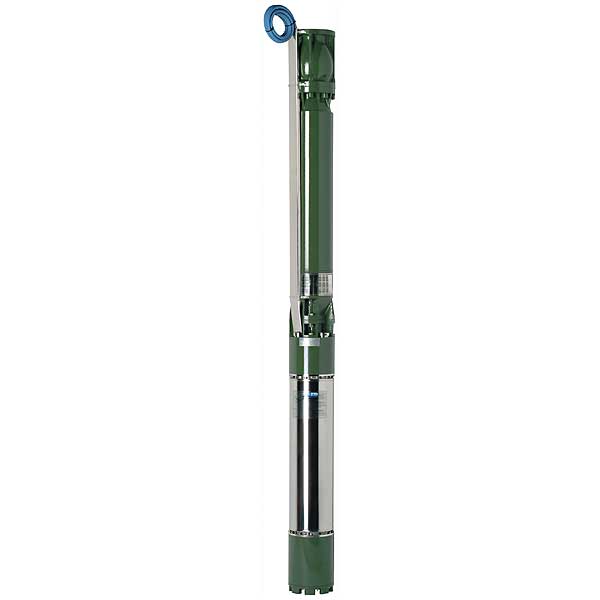

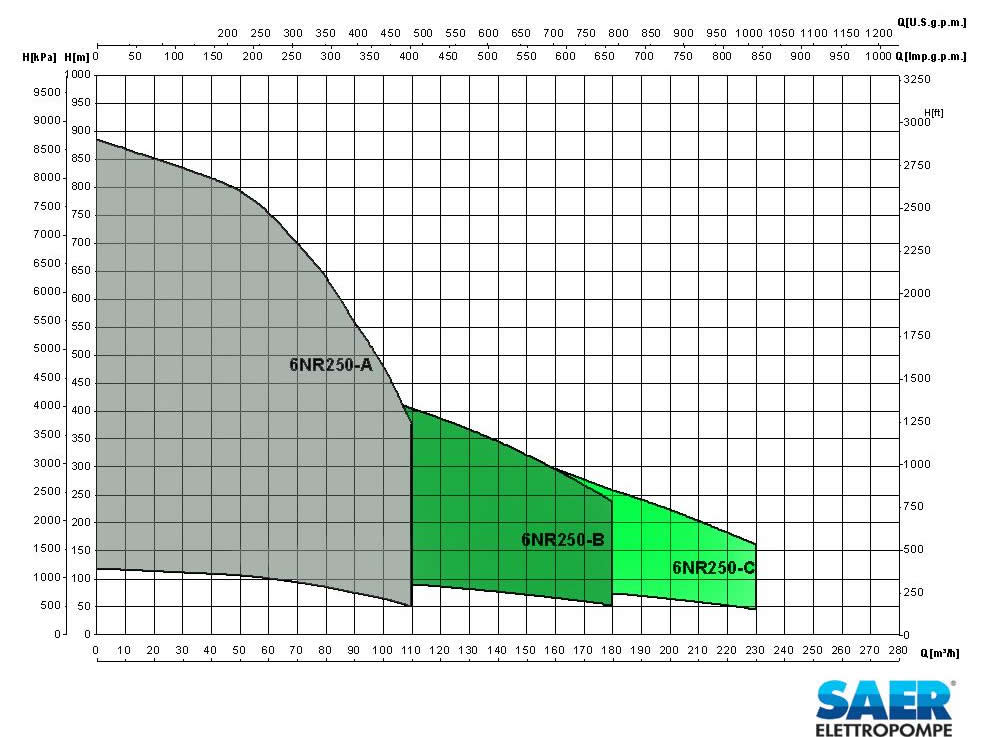

6NR-250

10” RADIAL SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 274 mm, tanks or natural basins.
MATERIALS: FeG450 steel.

  • Max Delivery: 230 m3/h
  • Max Head: 885 m
  • Power: 26÷185 kW
data sheet

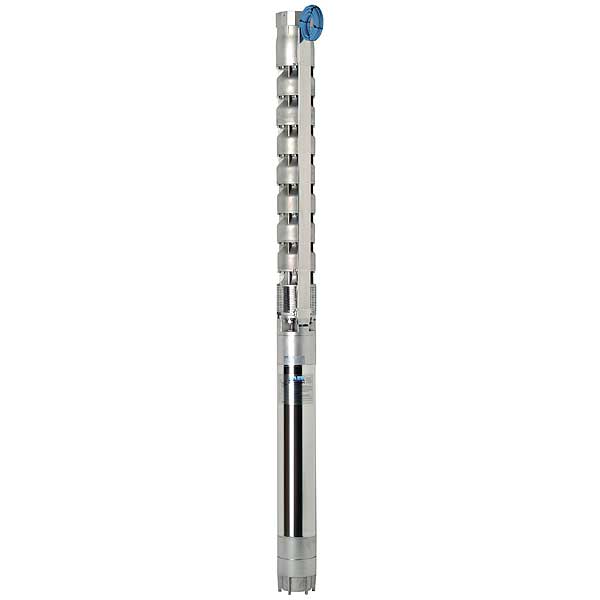

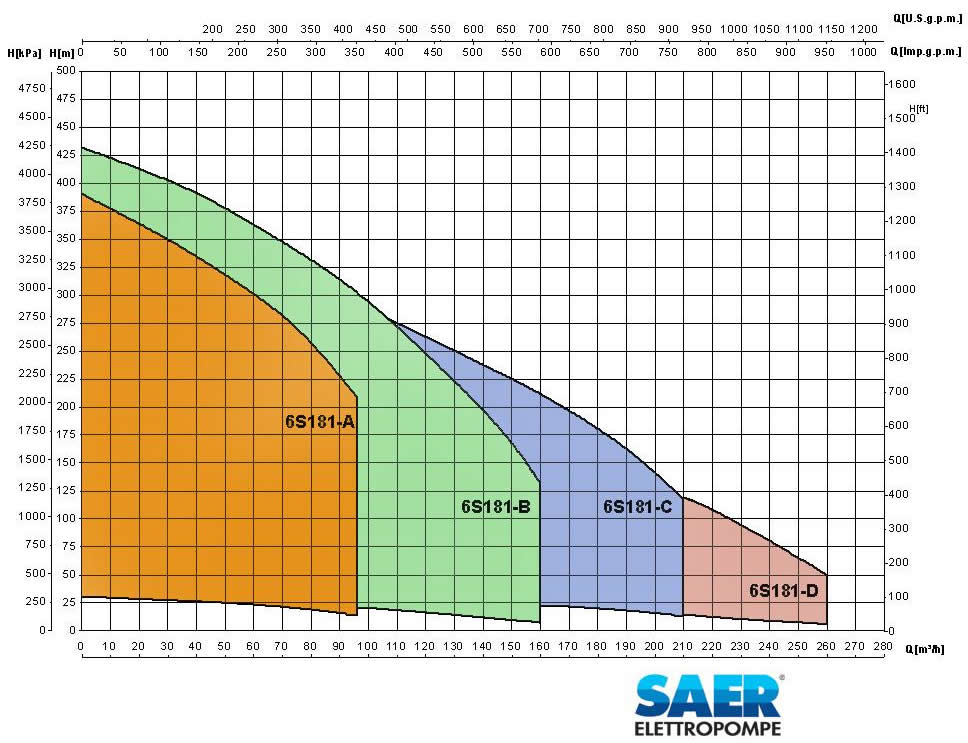

6S-181

8” SEMI-AXIAL SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 210 mm, tanks or natural basins.
MATERIALS: cast iron EN-GJL-250, carbon steel G20Mn5, AISI 316 stainless steel, marine bronze G-CuSn10.

  • Max Delivery: 260 m3/h
  • Max Head: 432 m
  • Power: 5,5÷110 kW
data sheet

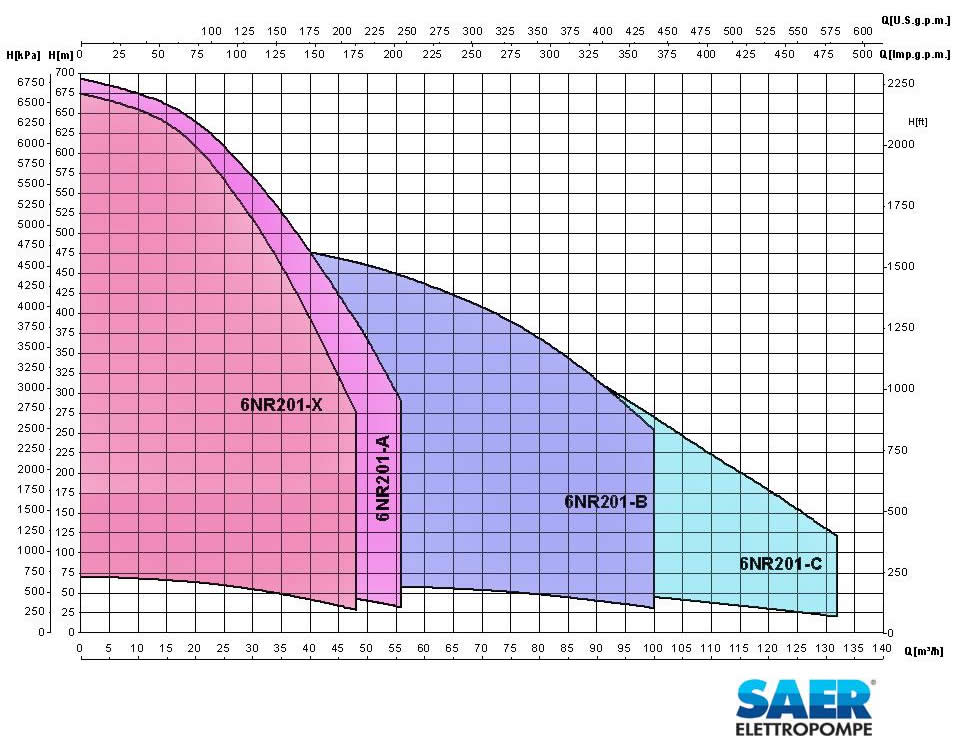

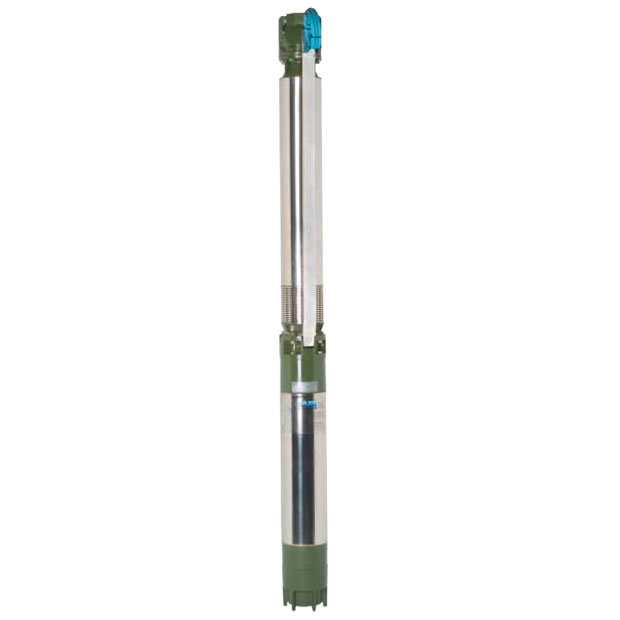

6NR-201

8” RADIAL SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 204 mm, tanks or natural basins.
MATERIALS: cast iron EN-GJL-250, AISI 316 stainless steel.

  • Max Delivery: 132 m3/h
  • Max Head: 693 m
  • Power: 7,5÷110 kW
data sheet

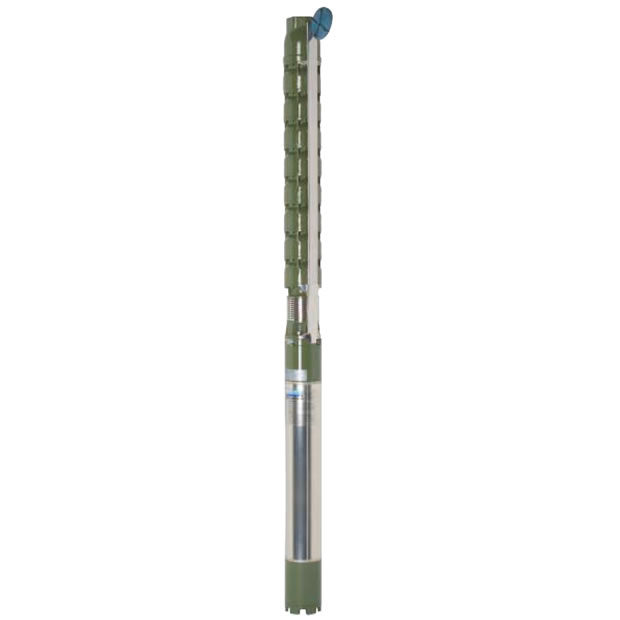

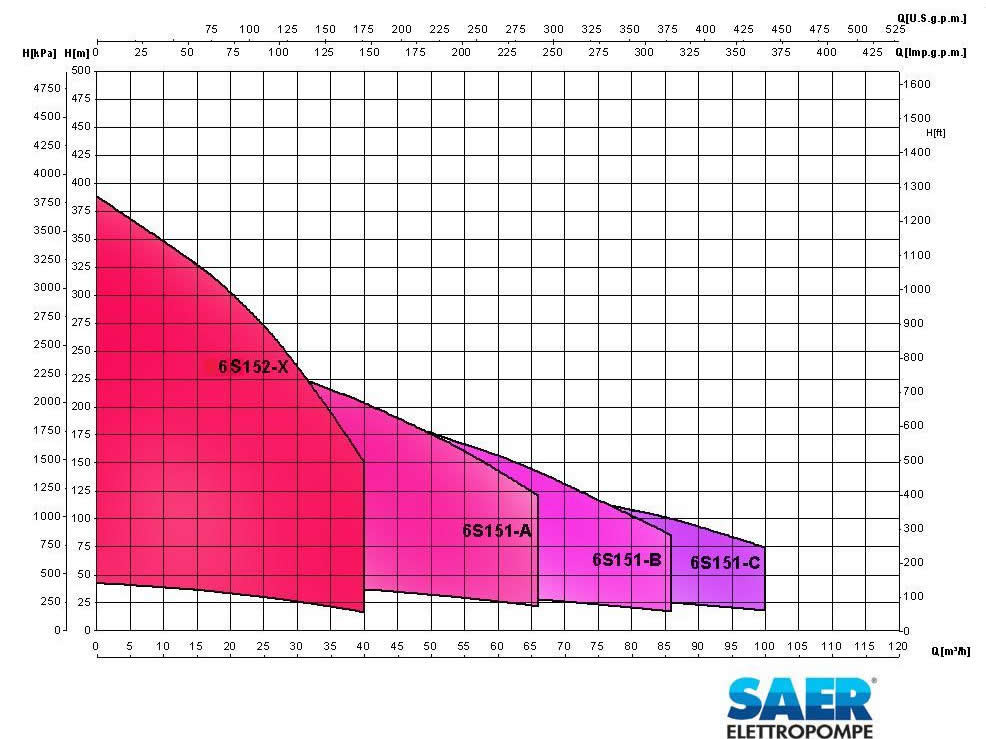

6S-151/6S-152

6” SEMI-AXIAL SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 158 mm, tanks or natural basins.
MATERIALS: cast iron EN-GJL-250, carbon steel G20Mn5, AISI 316 stainless steel, marine bronze G-CuSn10.

  • Max Delivery: 100 m3/h
  • Max Head: 388 m
  • Power: 4÷37 kW
data sheet

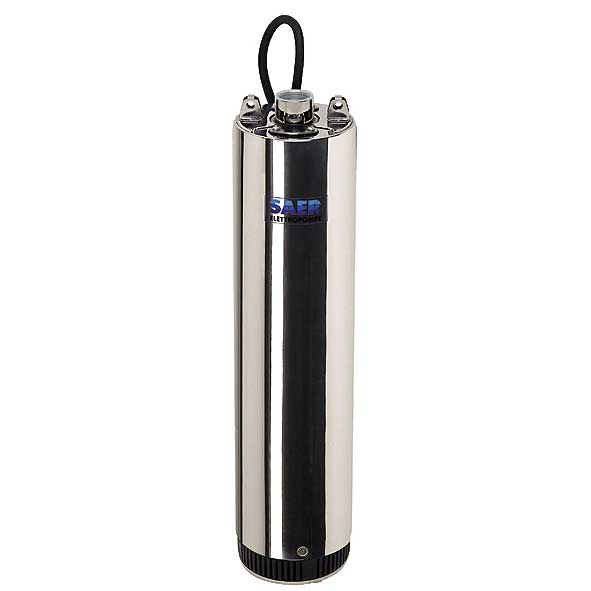

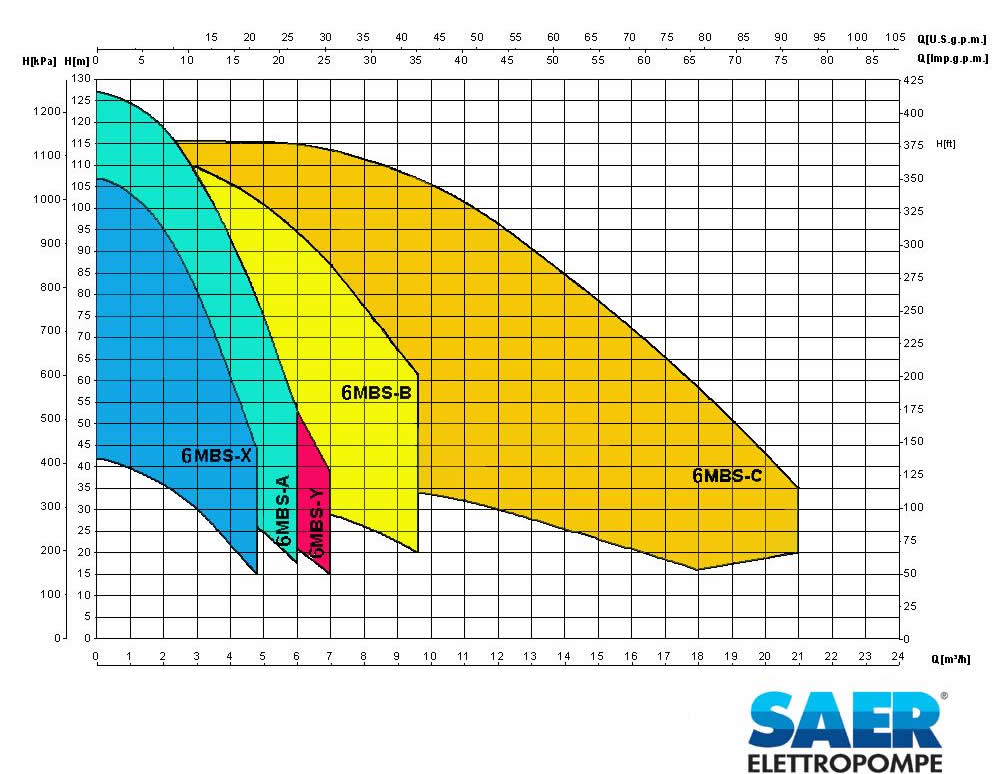

6MBS

ENBLOC SUBMERSIBLE MOTOR-DRIVEN PUMPS

APPLICATIONSFor water supply from tanks, basins or tubs and from openwells (large wells) or from 6” wells for residential, civil oragricultural use and for pressurizing water in general.
MATERIALS: AISI 304 stainless steel.

  • Max Delivery: 21 m3/h
  • Max Head: 127 m
  • Power: 0,75÷5 kW
data sheet

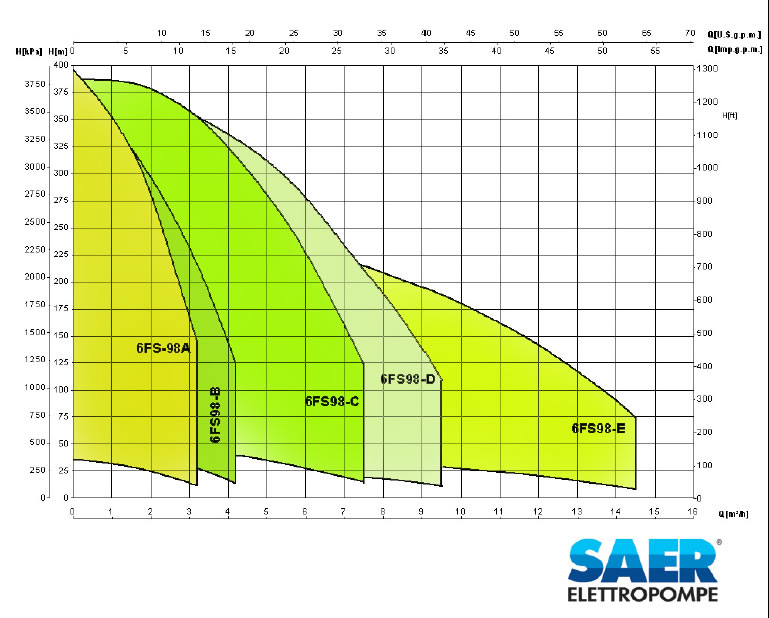

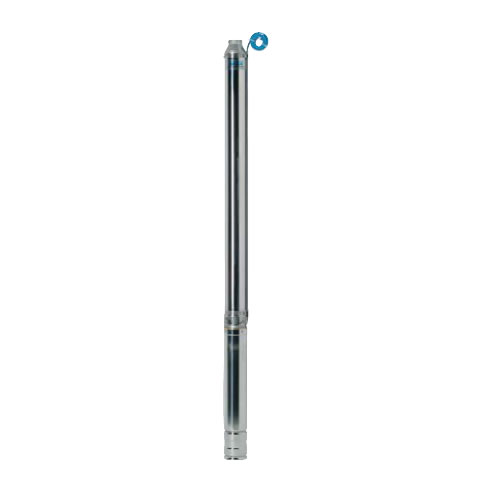

6FS-98

4” SUBMERSIBLE ELECTRIC PUMPS WITH FLOATING IMPELLER

APPLICATIONSSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of minimum diameterof 104 mm, tanks or natural basins.
MATERIALS: G20Mn5 1.6220 steel, brass, AISI 304 stainless steel.

  • Max Delivery: 14,5 m3/h
  • Max Head: 396 m
  • Power: 0,37÷7,5 kW
data sheet

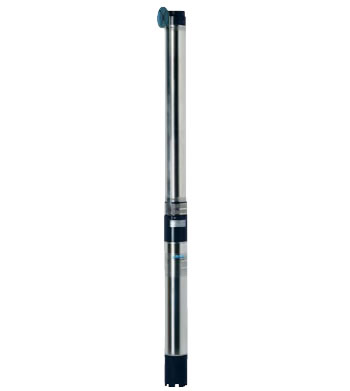

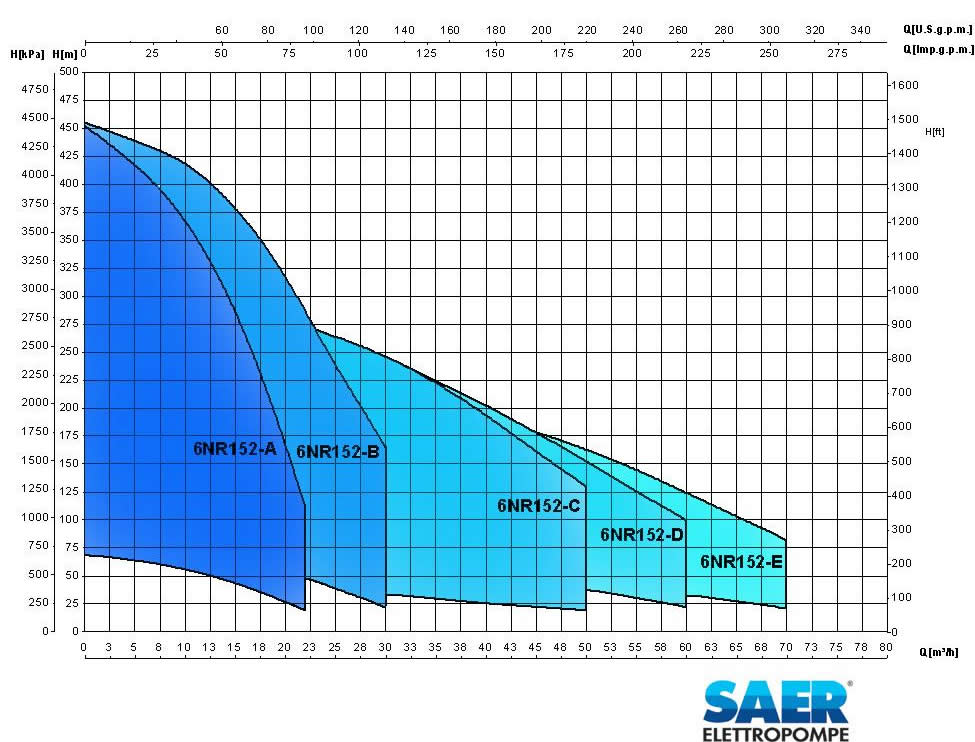

6NR-152

RADIAL SUBMERSIBLE ELECTRIC PUMPS 6”

APPLICATIONSSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 156 mm, tanks or natural basins.
MATERIALS: cast iron EN-GJL-250, AISI 304 stainless steel.

  • Max Delivery: 70 m3/h
  • Max Head: 307 m
  • Power: 3÷37 kW
data sheet

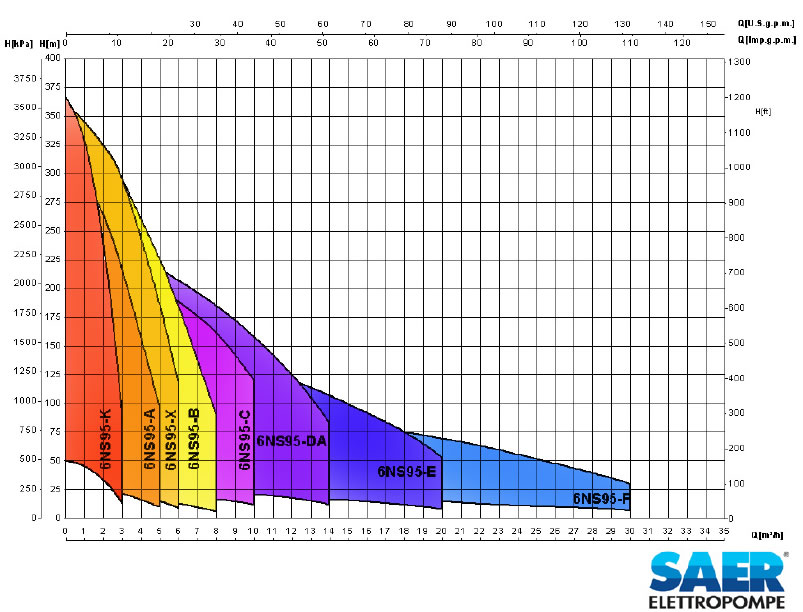

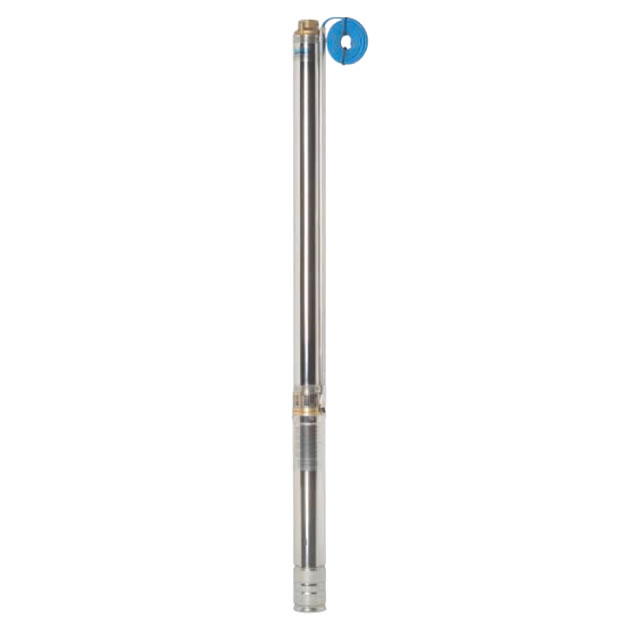

6NS-95

4” SUBMERSIBLE ELECTRIC PUMPS

APPLICATIONSSuitable for lifting, pressurising and distribution in civil andindustrial installations, autoclave and cistern inlets, washingplants, irrigation systems. Draws from wells of min. diameterof 104 mm, tanks or natural basins.
MATERIALS: FeG450 steel, brass, AISI 304 stainless steel.

  • Max Delivery: 30 m3/h
  • Max Head: 366 m
  • Power: 0,37÷7,5 kW
data sheet
